Digital 31 Bands Audio Equaliser

Please remark the plug type when order.

Product parameter

EQ-A31 technical parameters:
This machine adopts new DSP digital processor technology, which is used for high-quality processing of digital analog integration combined with audio input and output. The powerful enhancement of the functional parameters is a big surprise for improving the overall index of the audio system, which is better than the traditional hand-adjusted equalizer.
The audio output end uses traditional DOP in-line components to restore all standard music tones.
Applicable to: radio stations, multimedia conference rooms, recording studios, multi-function entertainment halls, live event performance systems, home theaters, HIFI audio. Sites with strict requirements on system indicators.

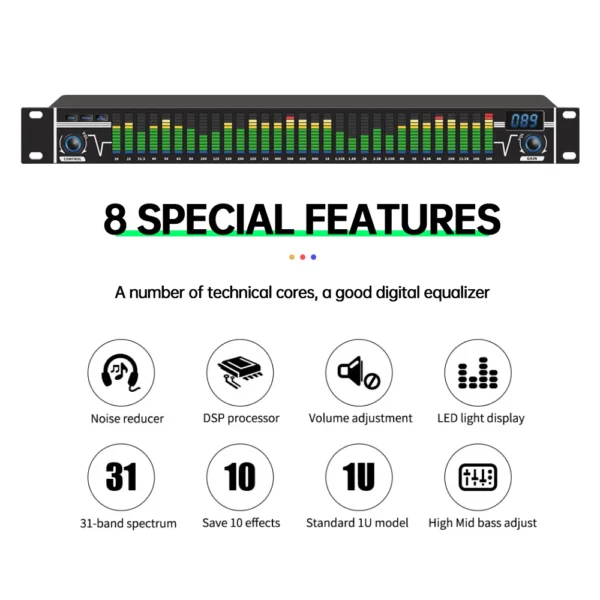

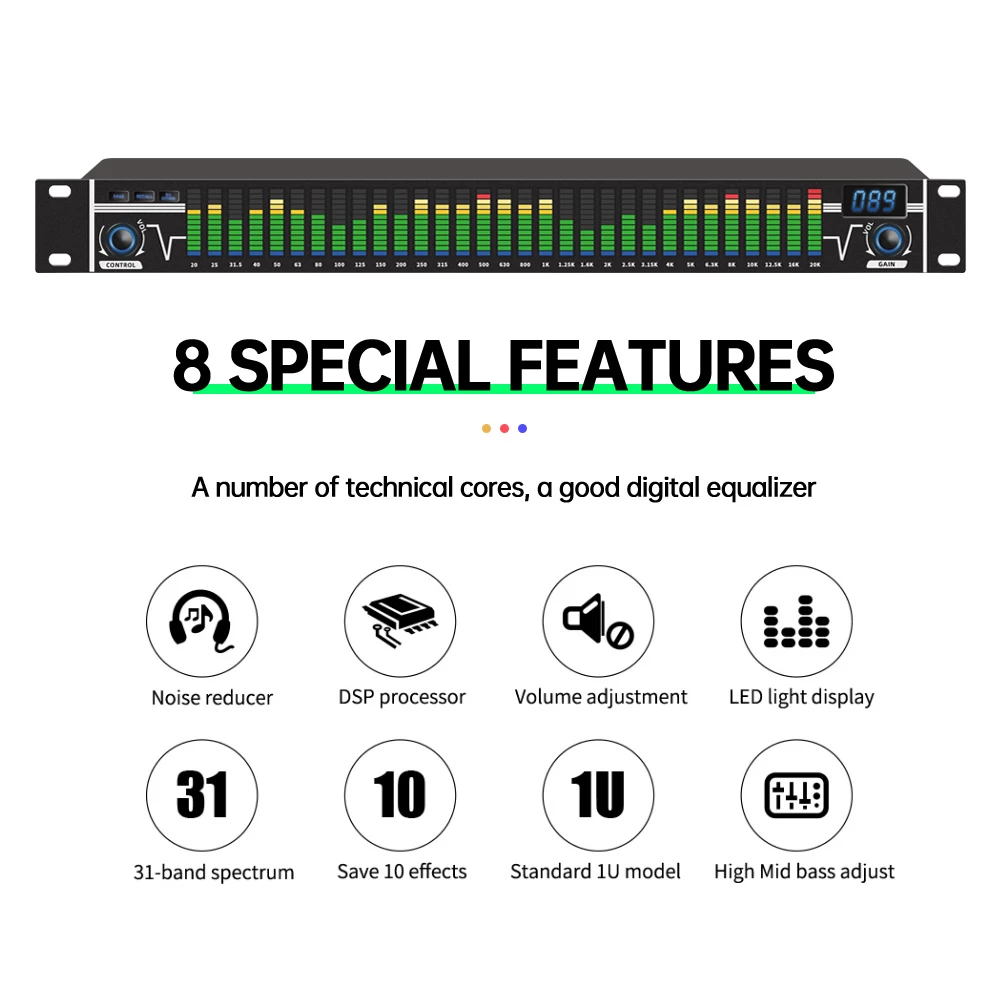

◎Standard 1U thin and light rack
◎Dual-channel synchronous control 31-band DSP processing equalizer

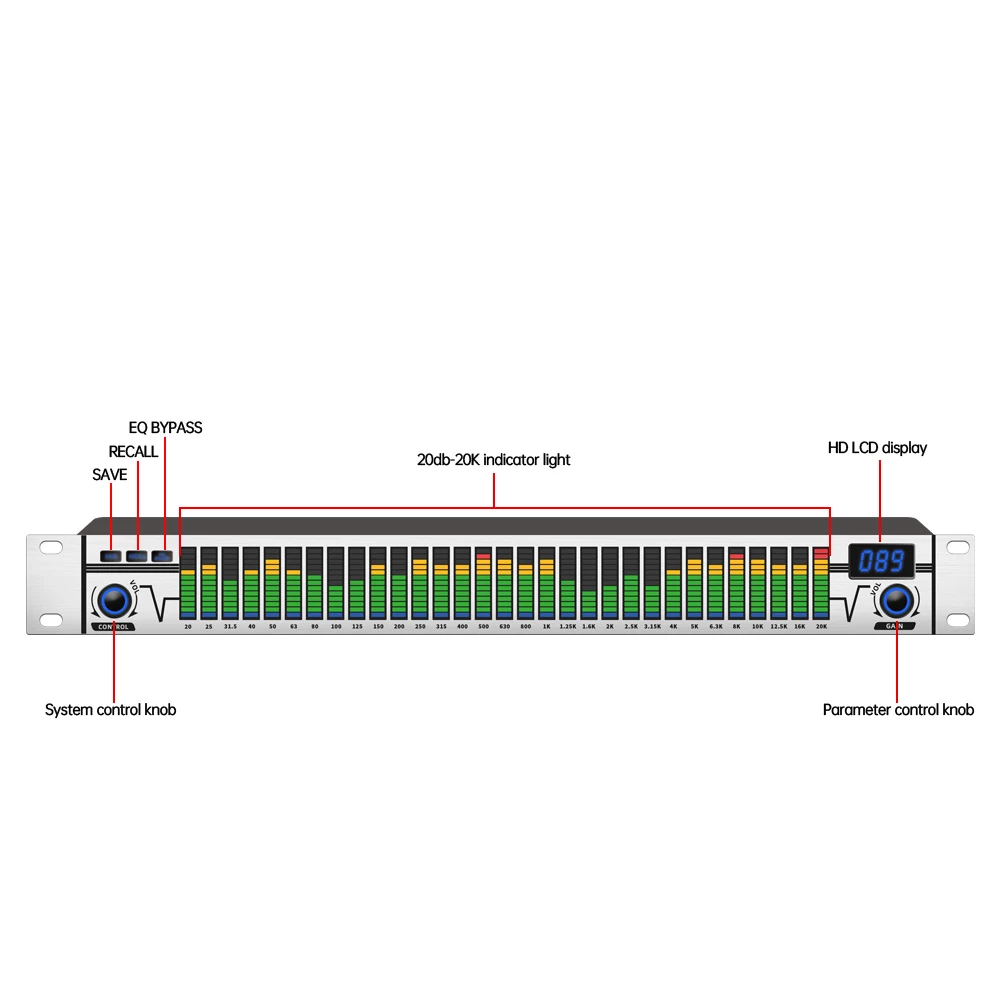

◎Each equalization band has LED spectrum indication, which helps users to clearly see the pitch of the tone during use.
◎Real-time 31-segment frequency hopping, spectrum accuracy 99%.
◎With noise reduction function of cutting-edge noise gate

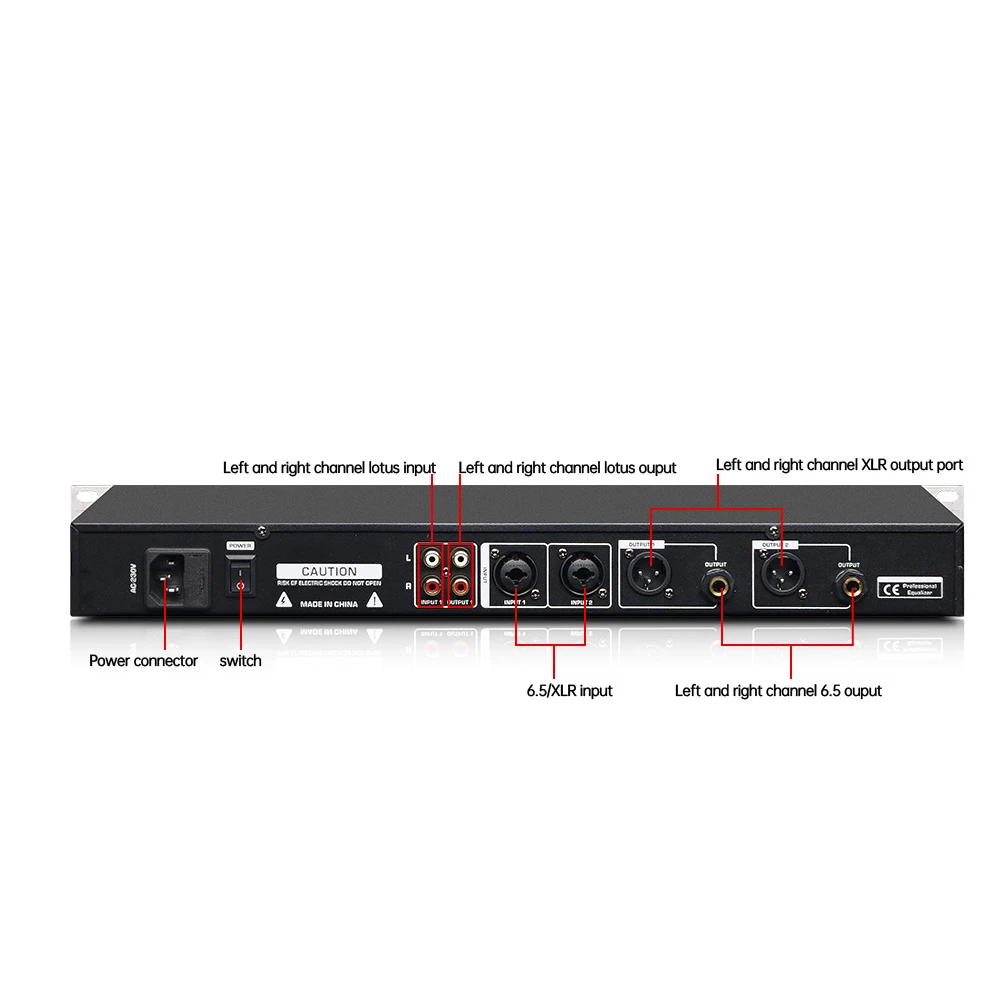

◎The input and output interface supports multiple types: TRS6.35/RCA Lotus/XLR XLR CANNON balanced interface
◎EQ bypass: bypass the graphic equalizer in the signal path

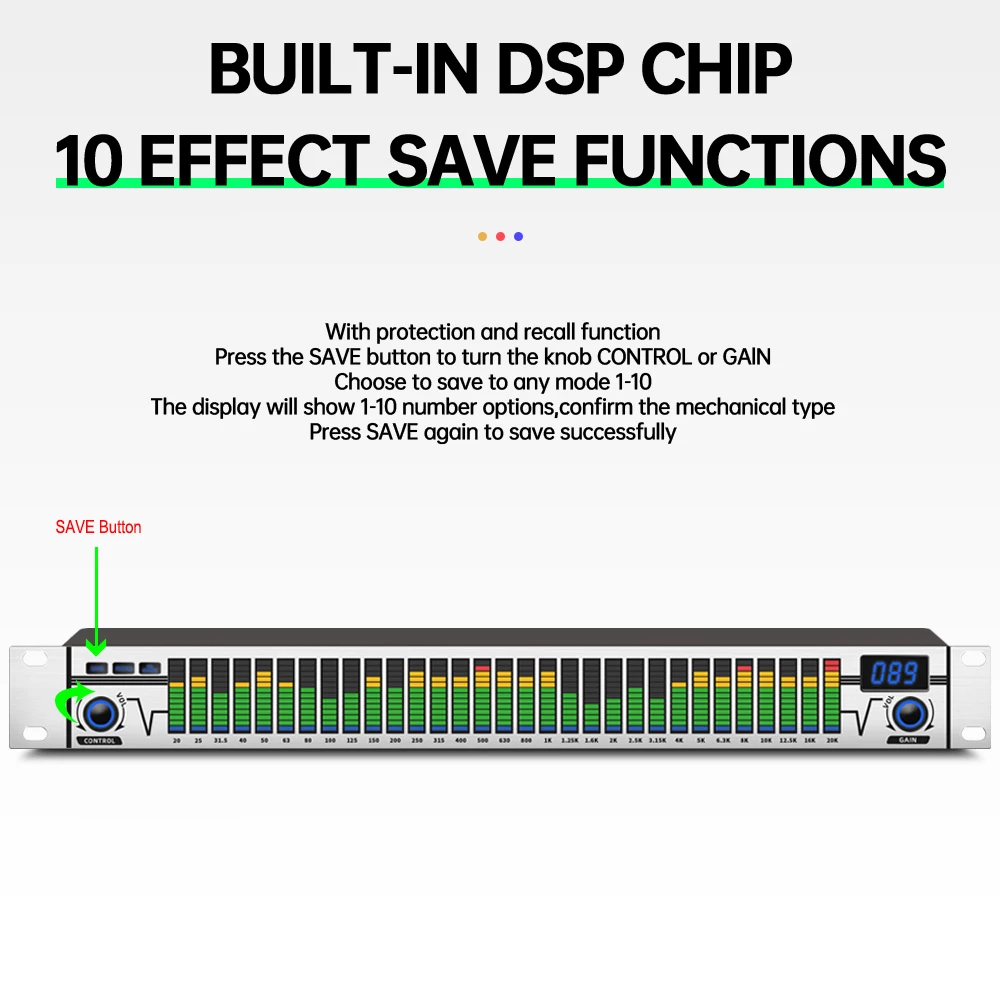

◎With save and recall function, 10 modes can be saved and recalled.
◎Power supply: 220V
◎Sound transmission gain: -1dB or 11dB
◎Line input impedance: 15KΩ
◎ Line output impedance: 300Ω
◎Frequency response: 20Hz-20kHz
◎Signal to noise ratio: 82dB
◎Power consumption: 30W
