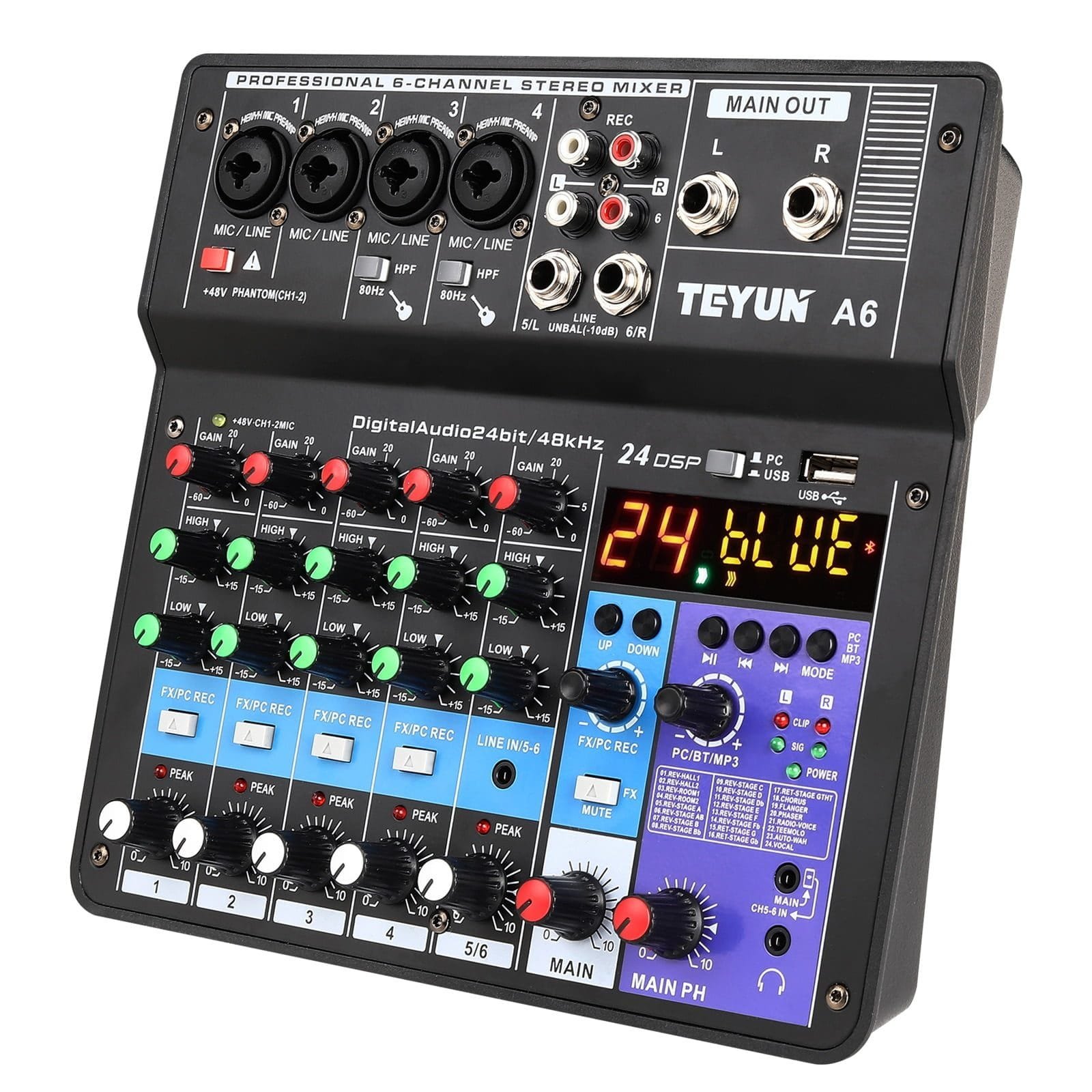

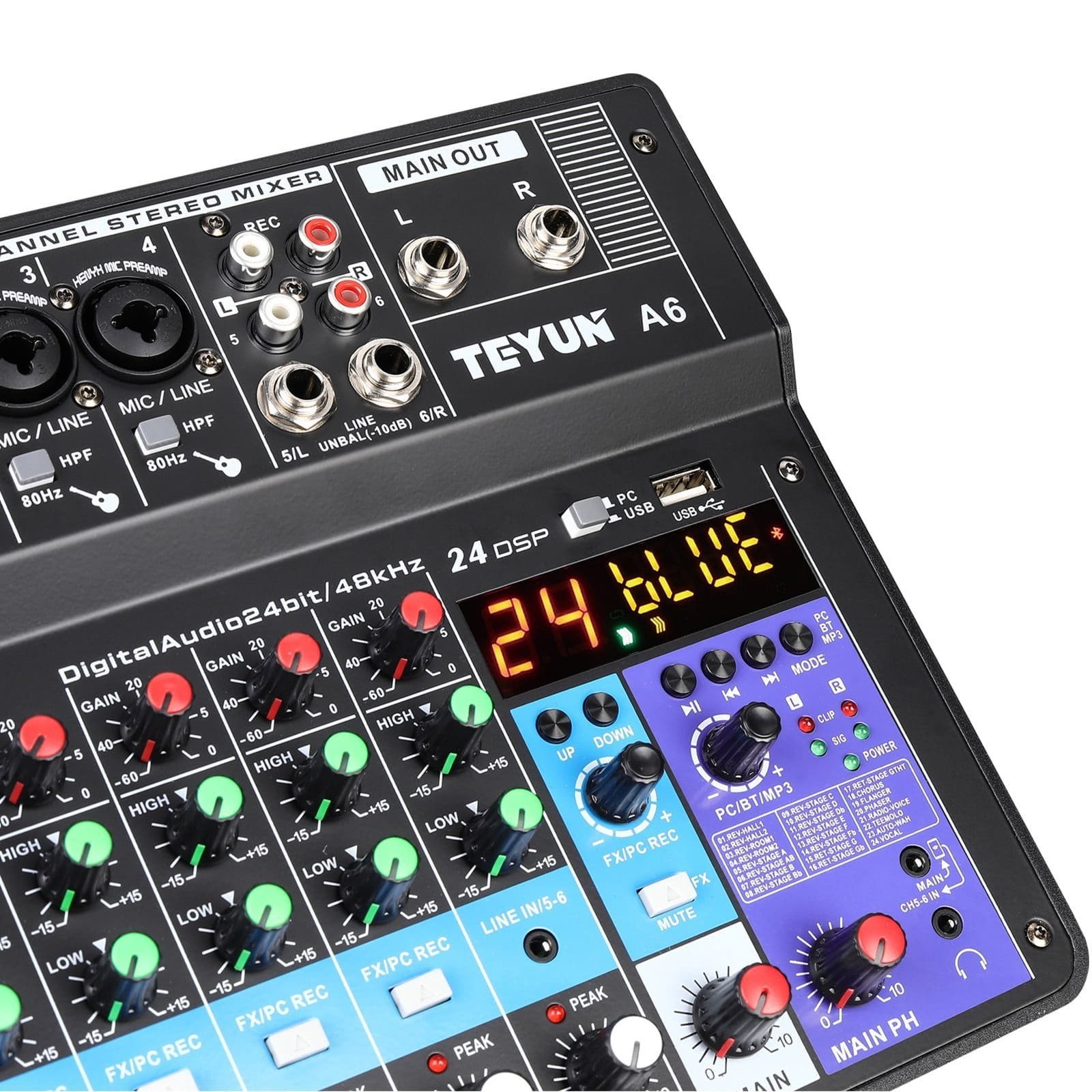

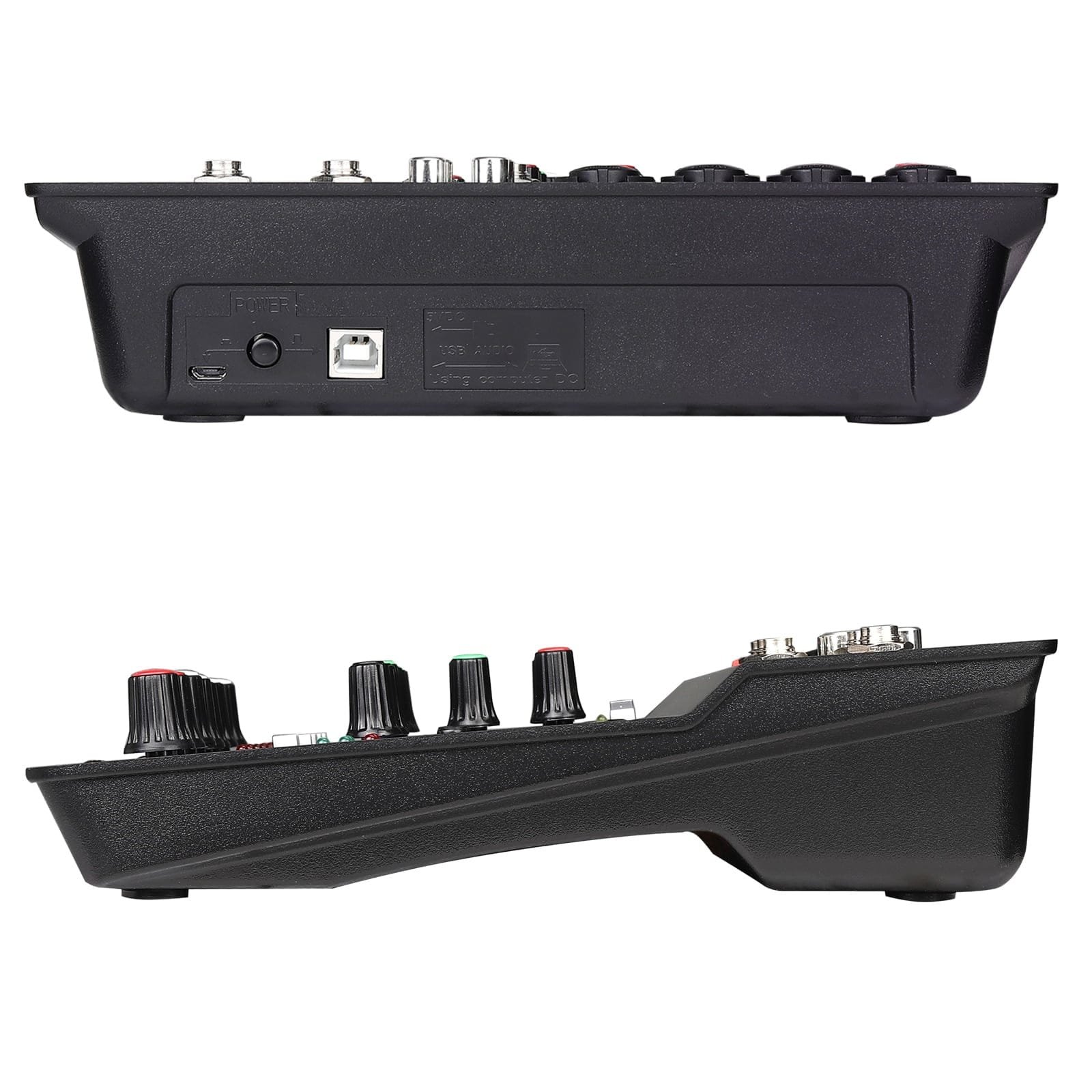

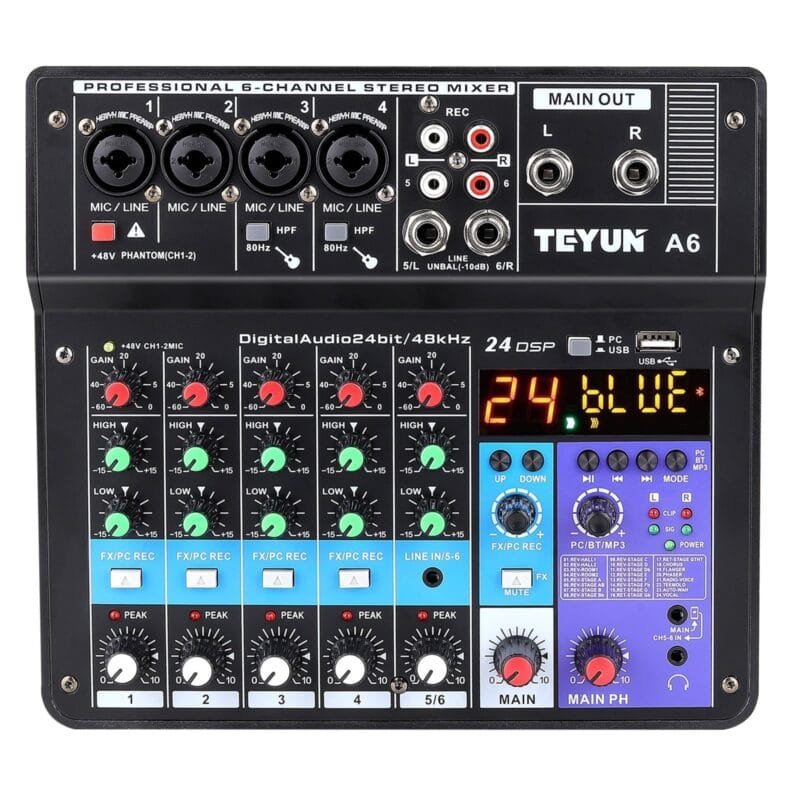

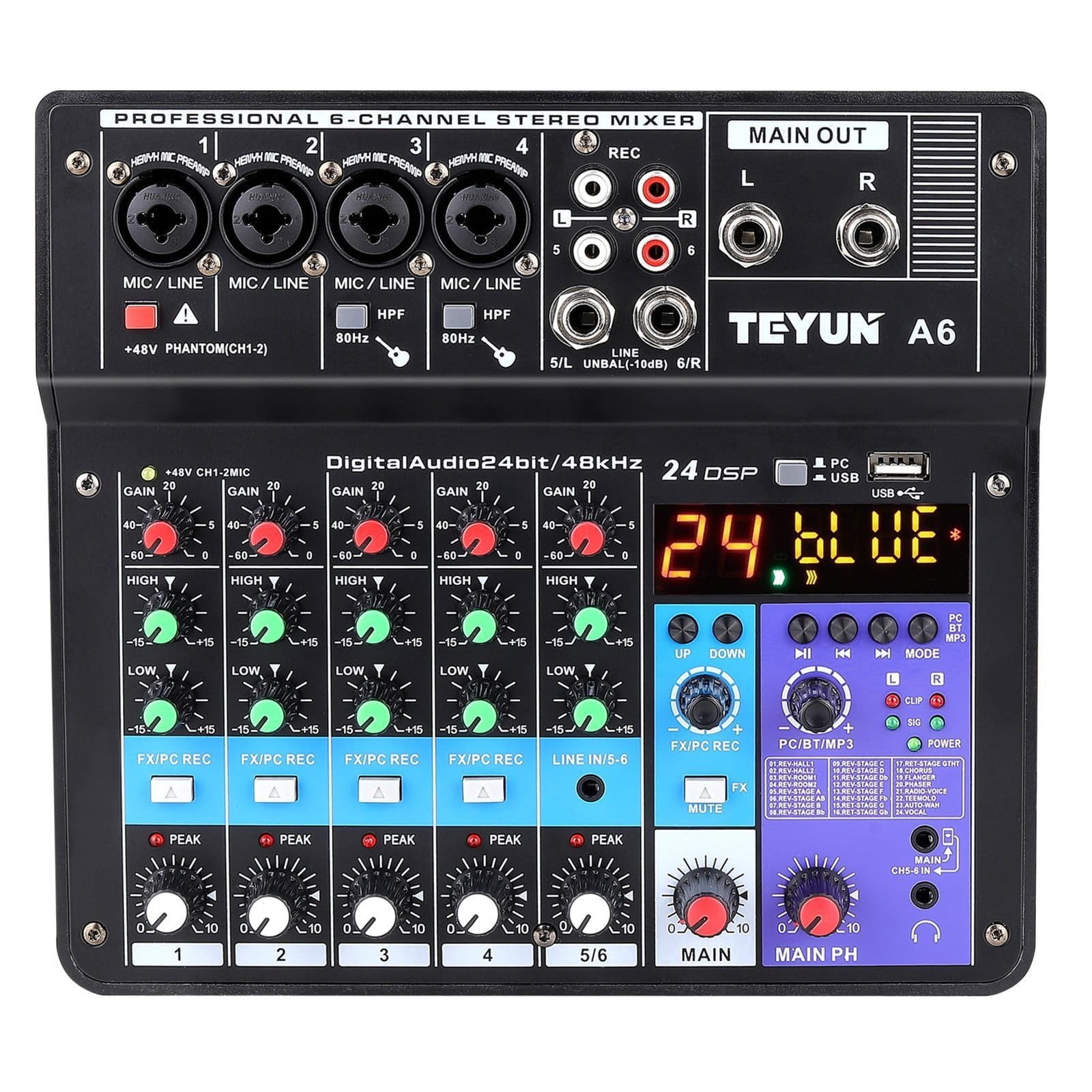

Wireless 6 Channel Audio Mixer

Product Feature:

The mixer is a multi-purpose 6-channel mixer with a sound card that can be meet users of home music production, webcast, K song and other needs.

Built-in high-speed ARM chip, with low-noise, voice-changing, pitch-changing, reverb, delay, electronic sound effects and other processing technologies.

The mixer is equipped with input gain and high bass adjustment, built-in 48V phantom power supply for condenser microphone direct power supply, high-definition headset output port, MP3 broadcast, device with a sound card can be directly connected to the PC.

Mixer compact, lightweight, can be directly connected to the PC’s USB port power supply,No additional power, can be connected to the computer through the USB power supply to run, eliminating the need for with the trouble with an external adapter, you can also use the mobile power or USB AC /DC.The adapter is powered by the adapter.

Product Specification:

Audio mixer with digital sound card

6 channels:4 MIC /2 line inputs (4 mono + 2 stereo)

High resolution, dual track recording and playback output

Various input / output interface, various recording modes

Super universal power input mode and switching 48V phantom power supply.

Various broadcast recording groups and dual monitoring modes

Flexible LOOPBACK function, perfect for recording and live network

LXR Mic input interface

Visual display recording level

Built in high quality operational amplifier.

Technical parameters:

1.Frequency response:

Input to stereo out 0.5 dB / – 1.0 dB (20 Hz ~ 20 kHz).

Reference output level rate: 1kHz.

Gain knob: Medium

2.THD + N:

0.02% @ + 10dbu (20 Hz to 20kHz).

Gain knob: Medium

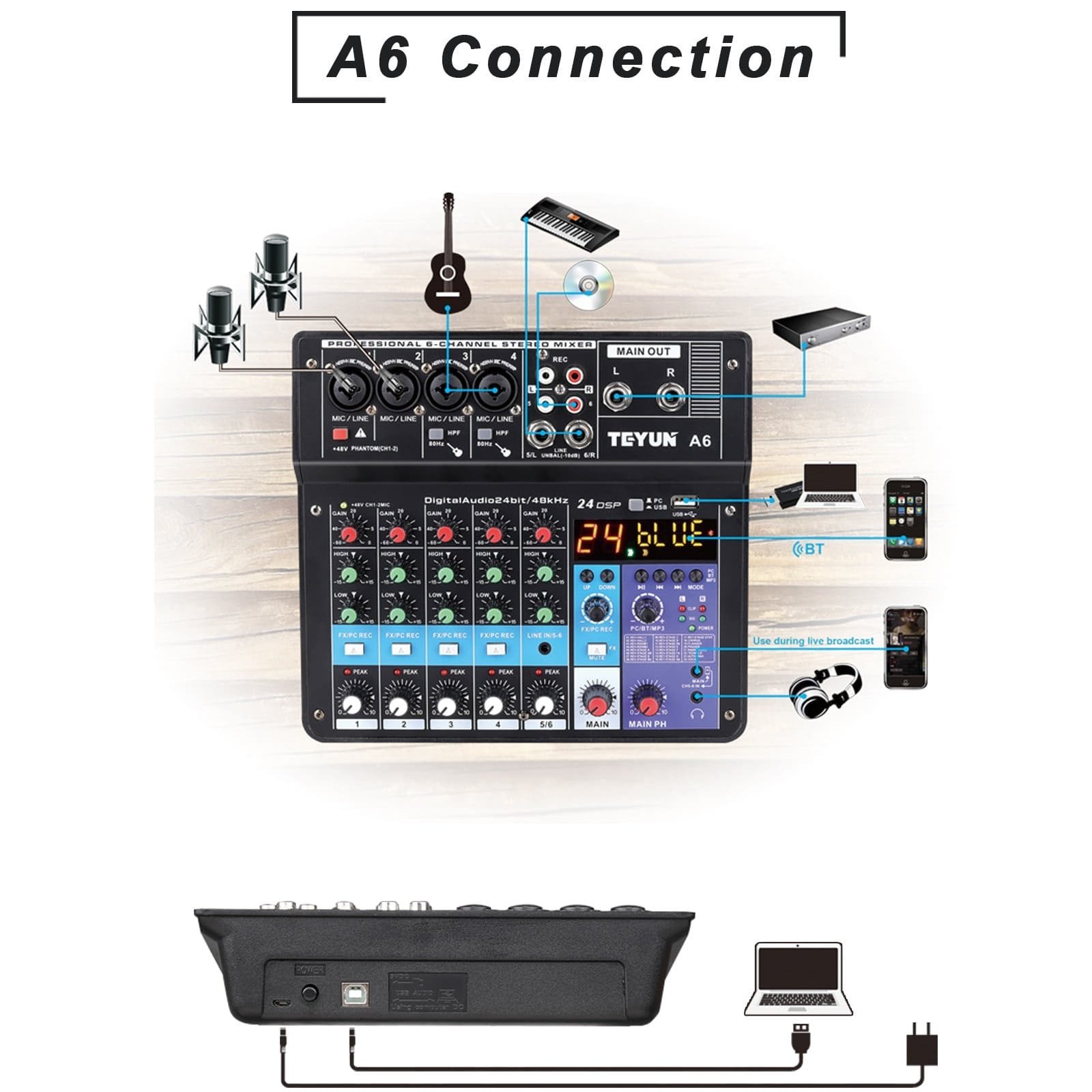

3.Input channel: MIC * 4、 2RCA、 PC、 2LINE、 USB、 Wireless 、3.5MINI

4.Output channel:

STEREO OUT:2

PHONES:1

3.5MINI MAINPH OUT:1

3.5MINI LOOPBACK output

5. Bus: STEREO: 1

6. Input channel: HPE (mono): 80Hz, 12dB / octave (CH3, 4)

7. EQ HIGH Gain: + 15dB / – 15dB, Frequency: 10kHz slope

EQ LOW Gain: + 15dB / – 15dB, Frequency: 100Hz slope

PEAK LED:When EQ signal reaches 3dB below distortion, LED switch ON

8.MAIN STETREO LEVEL When the signal level reaches 0dB, the green light is ON, when it reaches 3dB below the distortion, the red light is ON.

9.Input and output level: Mic (- 60dB) LINE (- 40dB)

Package Included:

1 X Audio Mixer

1 X Power adaptor with USB port

1 X User manual

1 X Colorful Box

The Q＆A For A6

Question One.Unsuccessful connection to the computer.

Solution:

1.Check whether the power supply current of the computer is above 500 mA and the voltage is above 5V.

2.Check the button on the back of the mixer has been pressed, need to switch the mode to PC.

3.Check if there is any problem with the USB interface of the computer, try another USB interface or another computer.

4.Check if there is any problem with the USB cable, try another cable, the screen shows that the PC is successfully connected.

Question Two.Wireless connection is unsuccessful.

Solution:

Check if the MODE/BT button is pressed to switch the mode, the screen displays BT stands for Wireless mode, the screen will flash during pairing, and the screen will not flash when the Wireless connection is successful, the Wireless name is A6.

Question Three. There is noise during recording.

Solution:

1.Check if the power supply of the computer is above 500mA and the voltage is above 5V.

2.Try another USB cable, because unstable connection will cause noise.

Question Four.The microphone sound is low.

Solution:

Use the XLR three-pin plug cable to connect the microphone to make the sound louder .It is
recommended to use a condenser microphone. This mixer is more suitable for condenser microphones.

Question Five.There is no sound when connecting USB to play music.

Solution:

Check if the USB button on the front of the mixer is pressed.

Note:

All product outward appearance, the size color take the material object as, the picture only supply the reference.

We provide you with the best product and service. If you have any problem, please let us know, and we will solve the problem ASAP.
