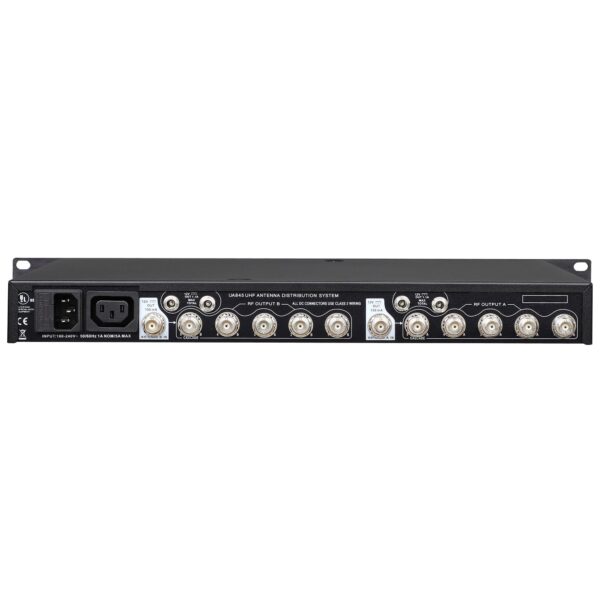

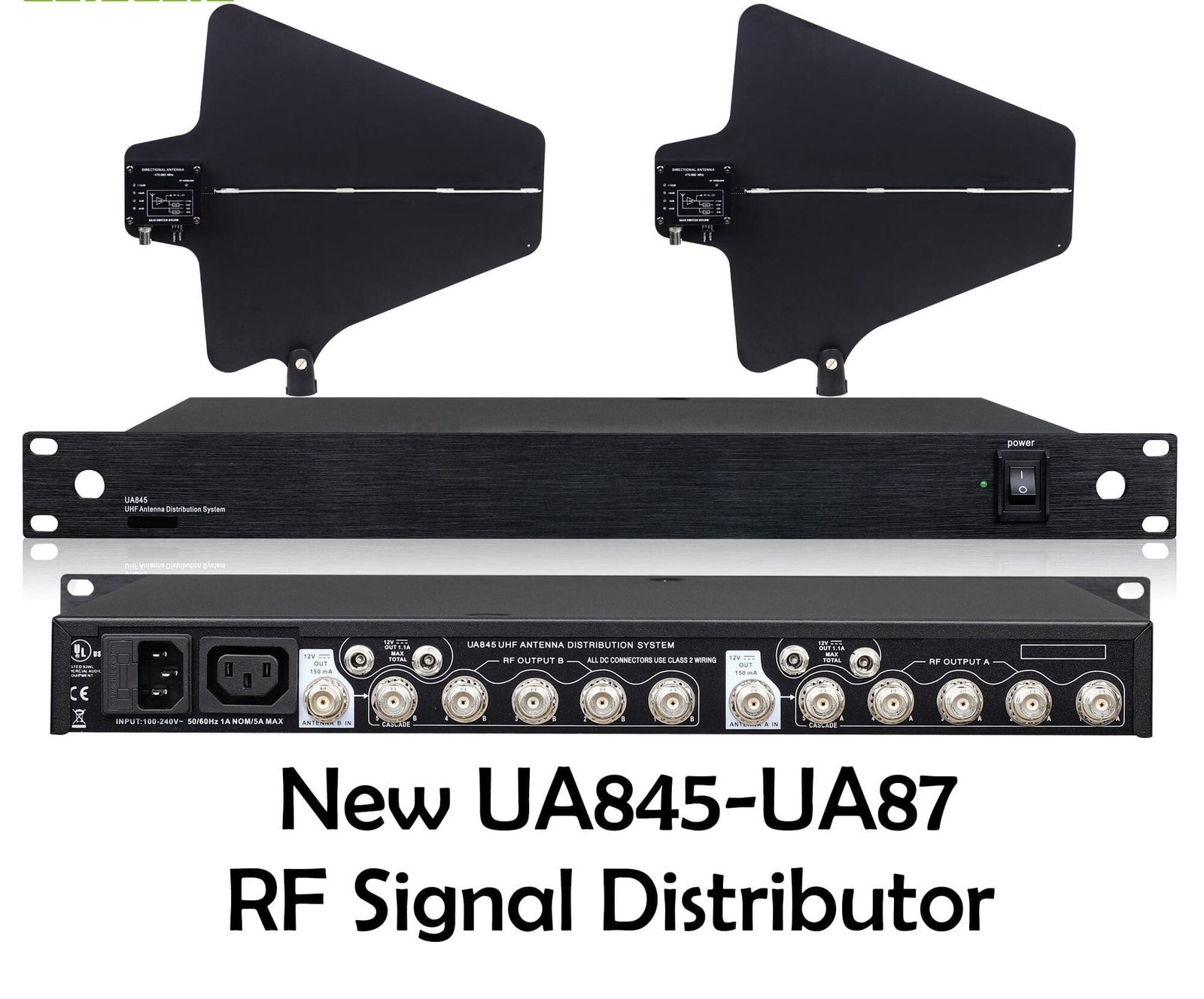

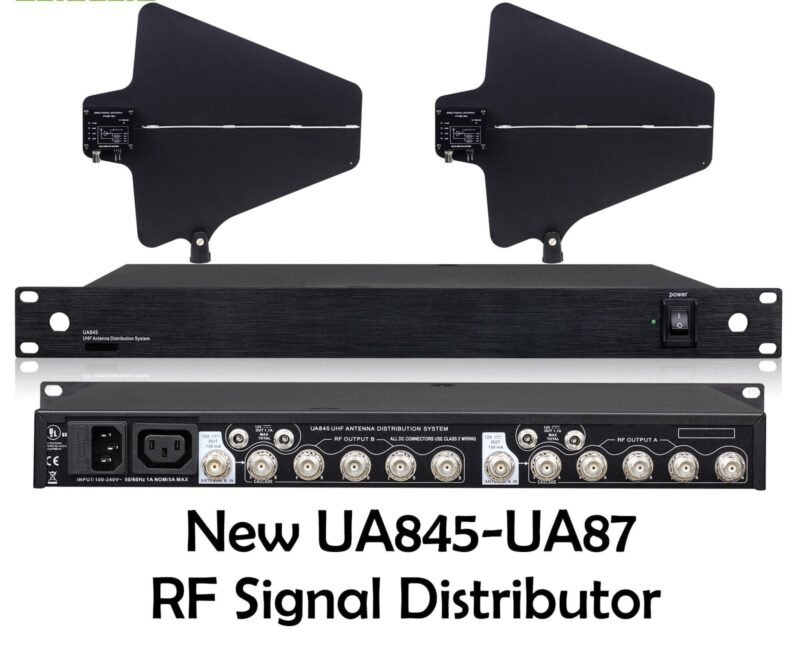

RF Signal Distributor

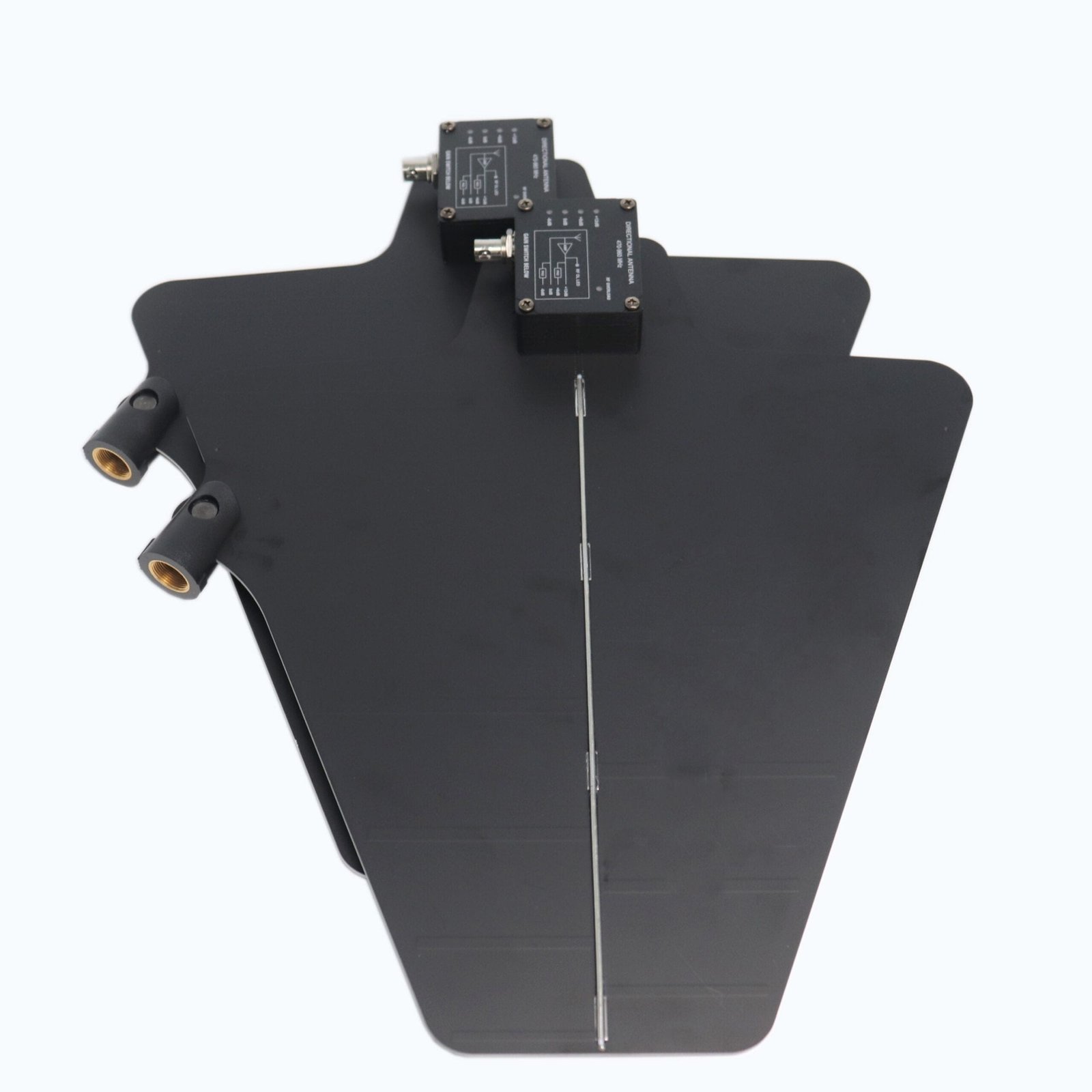

♦U87 is a broadband U-segment LPDA antenna

♦Enhance signal reception by 12dB, radiation angle 90 degrees

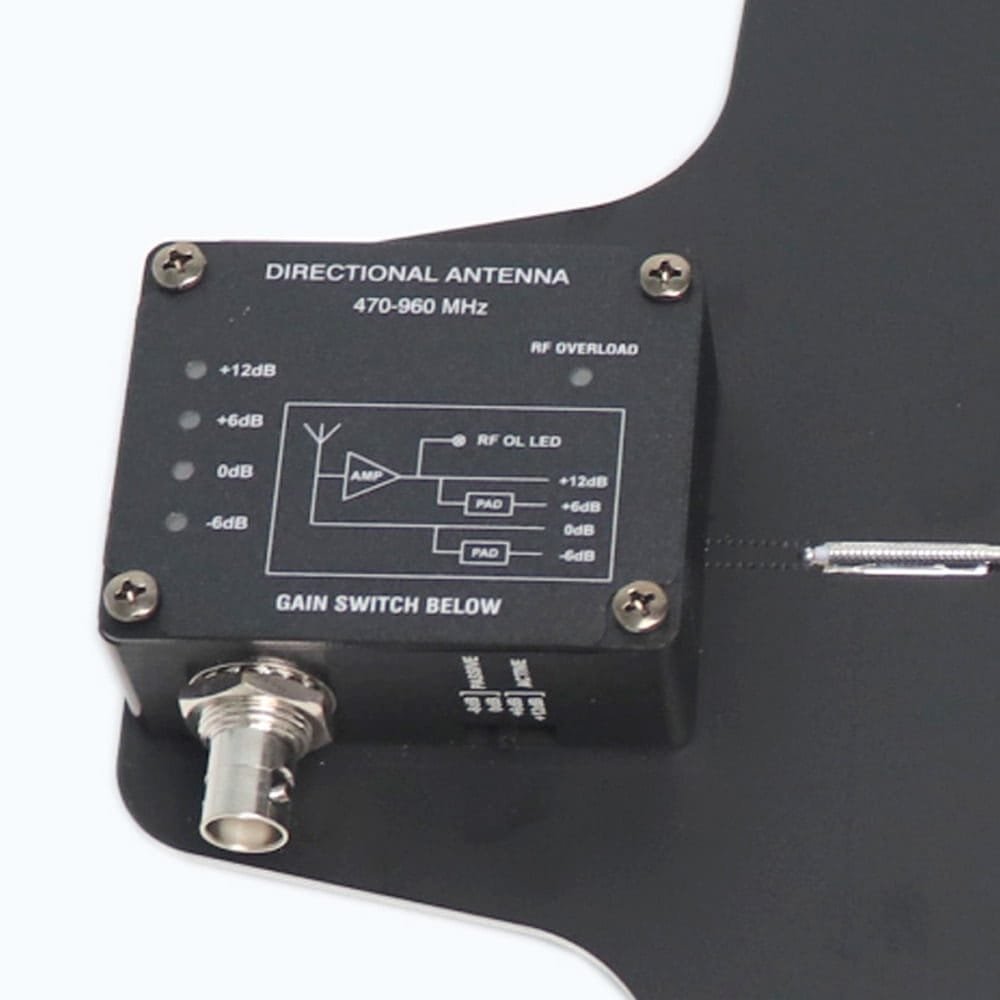

♦Integrated CNC adjustable 12dB gain amplifier

♦Antenna size: 360mmX323mmX28mm

♦Structure: epoxy glass fiber

♦Surface: black matte

Gain amplifier technical index:

♦Frequency: U section 450-950MHz

♦Input/output impedance: 50 ohms

(SWR<=1:1.5;Typical=1:1.4)

♦Interface: B-type female

♦Gain (maximum): -6    12dB (typical)

♦3rd order intermodulation intercept point: +45dBm (typical)

♦Gain flatness: +1dB, full frequency band

♦Power supply: +9V to 12V (typical), 150mA

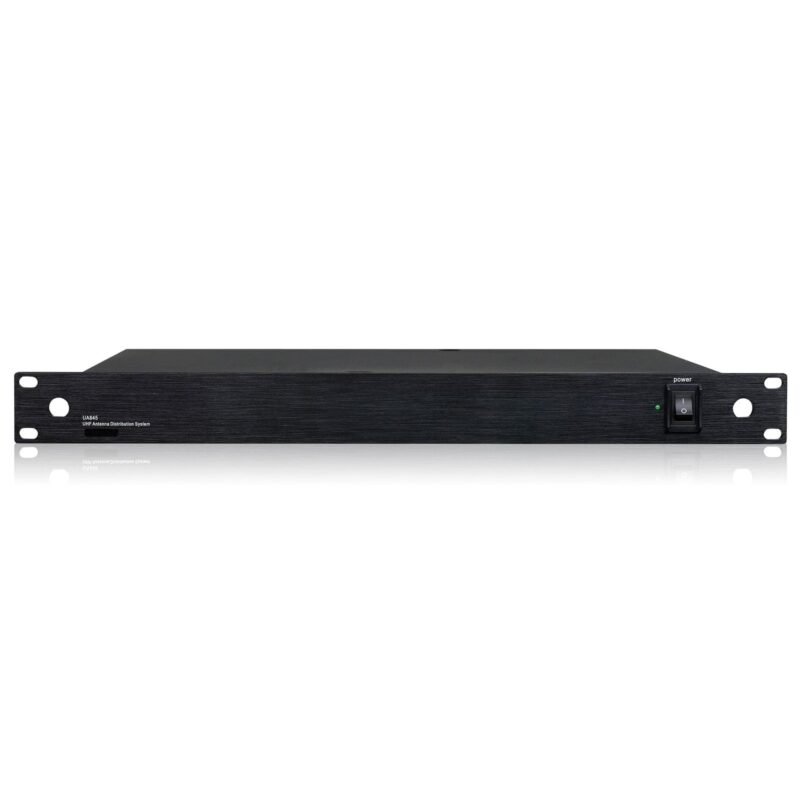

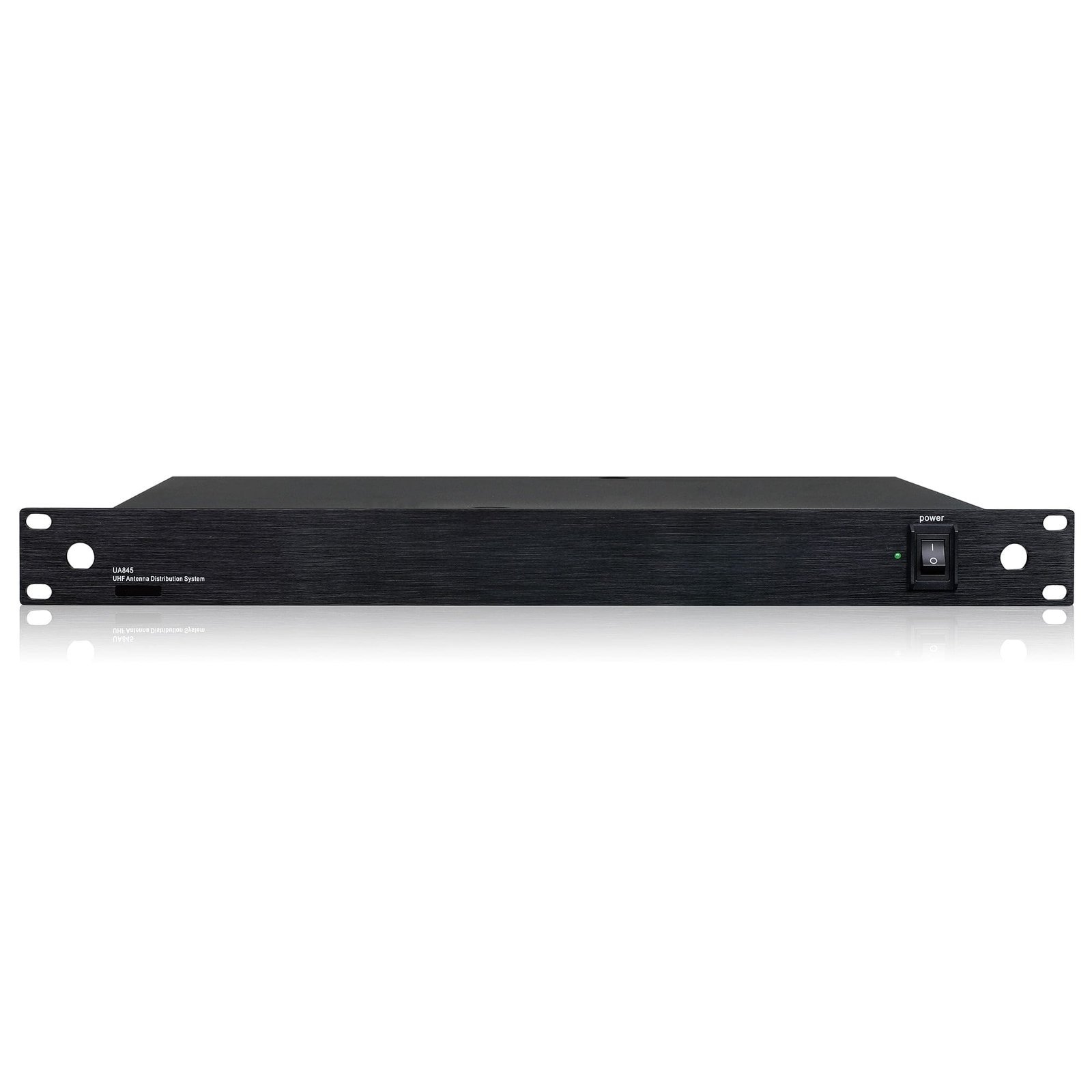

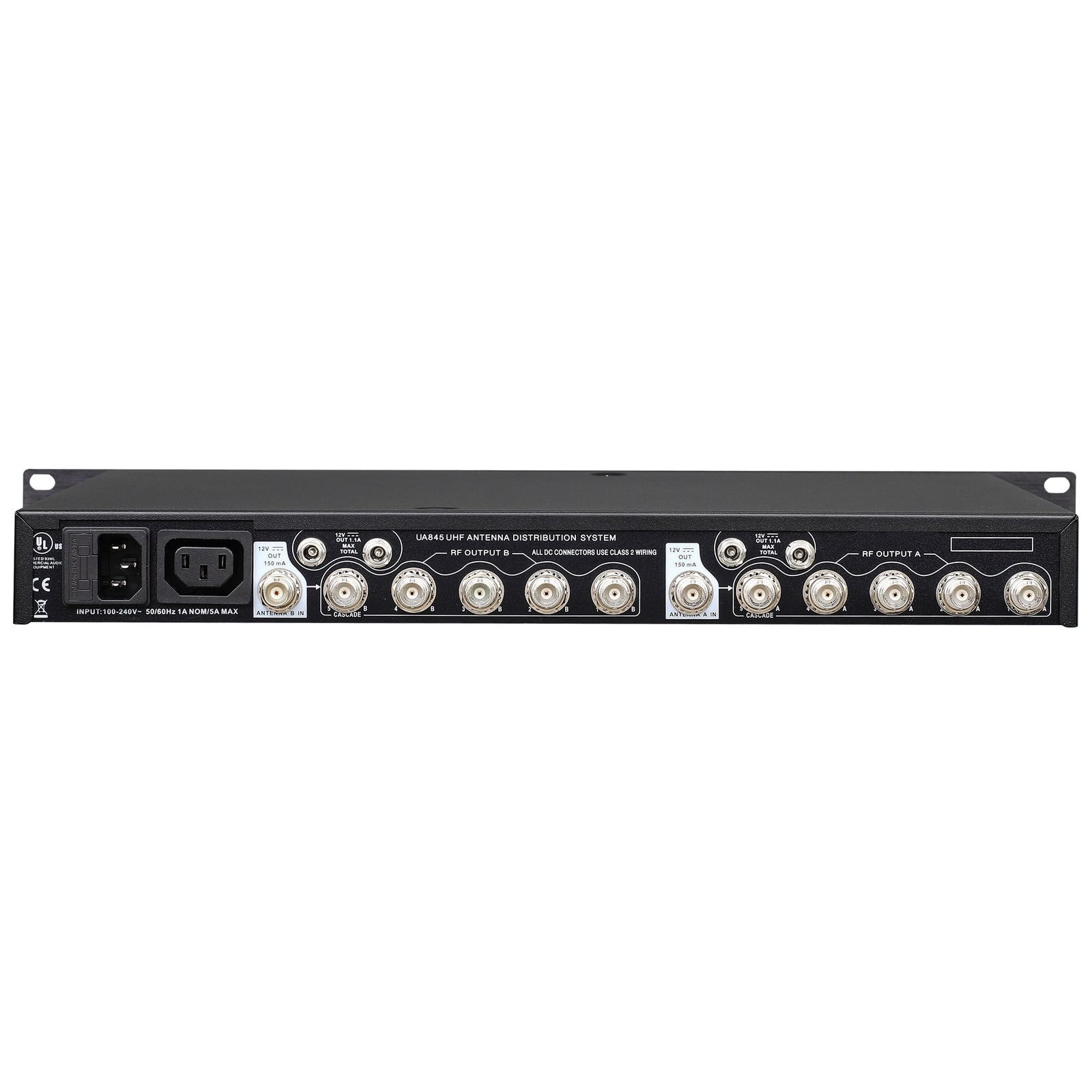

Powerful distribution

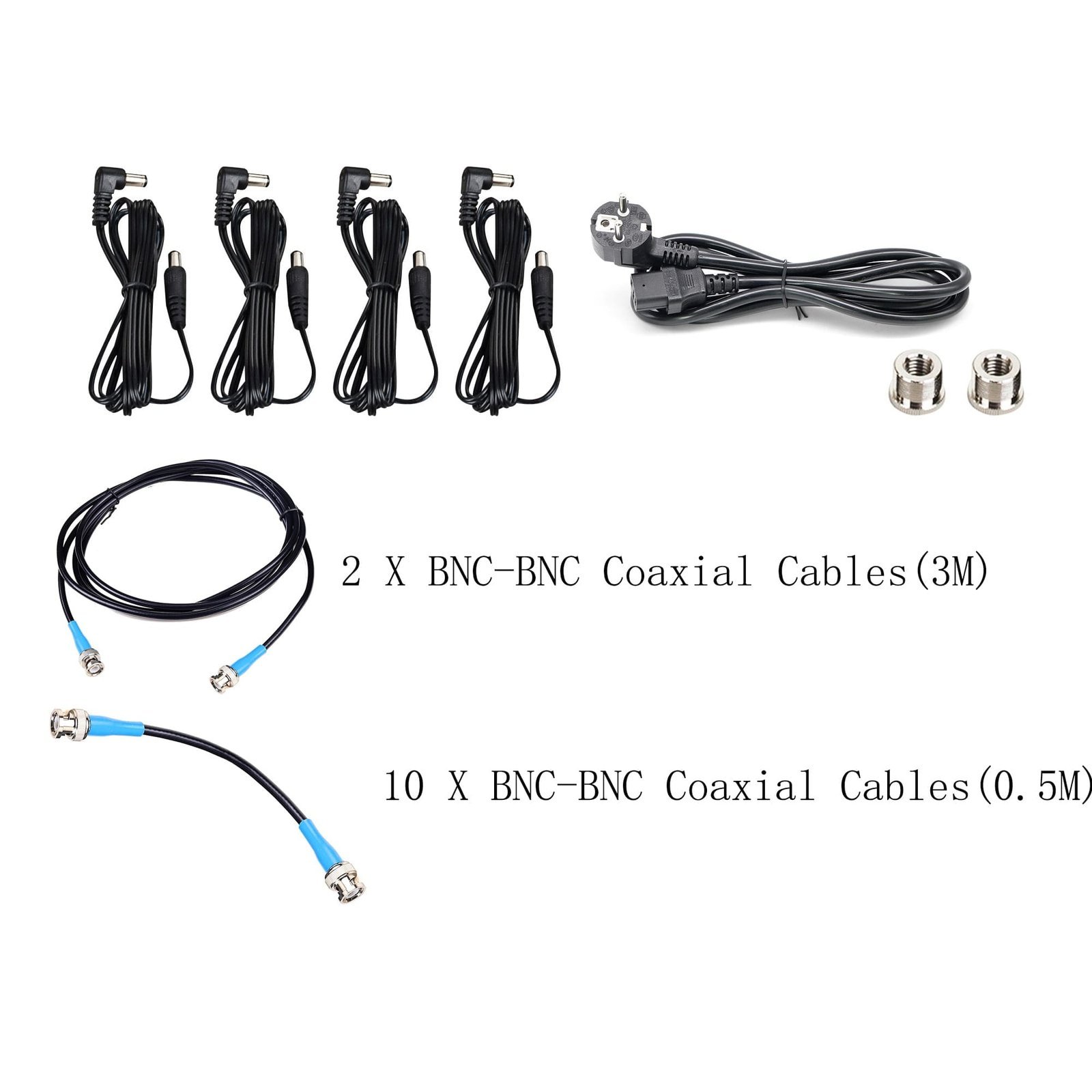

RF signal antennas, can connect up to 5 wireless receivers, or use the cascade method to cascade up to 8 antenna splitters for 32 sets of wireless receivers , And power the active antenna through the BNC cable. Ultra-wide working frequency band 450-970MHz. The RF signal overload indication and adjustable RF signal level settings ensure that the maximum working distance can be achieved even if different lengths and different types of cables are used.
