Product discription:
Model: LX-G2
Rated power: 120W-200W
Impedance: 2-4ohm

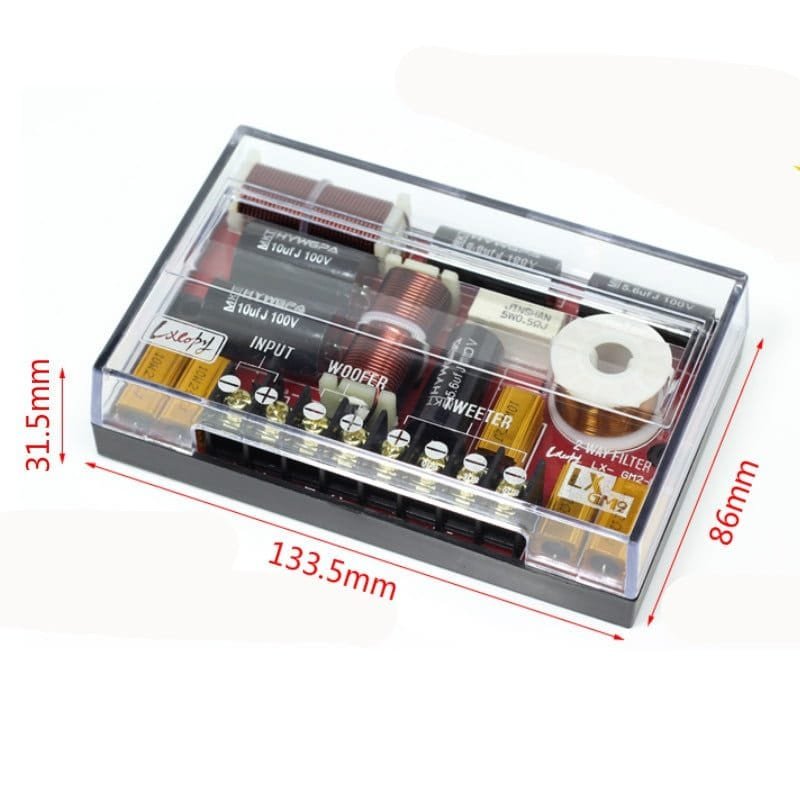

Size: 133.5 * 86 * 31.5mm
Weight: 0.3kg
Crossover frequency: 3.5kHz
Crosspoint: -6dB
Slope:12dB/oct

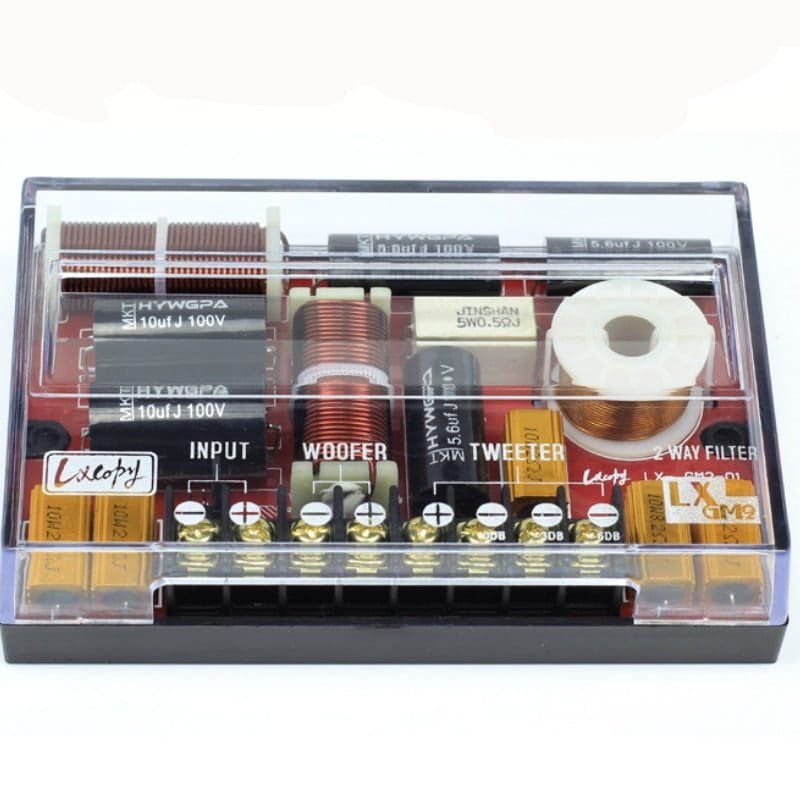

Wiring port definition: IN: input connect Amplifier output , WOOFER: connect Bass, TWEETER:connect Tweeter.
Common division are generally low-cost electrolytic capacitor type circuit parameters particularly large. Our division with a good capacitor also strengthen the design:
The main capacitor using a metal material MKP film capacitors.
Parallel fashion. Reduce the amount of capacitance and inductance resistance, effectively enhance the sound quality.

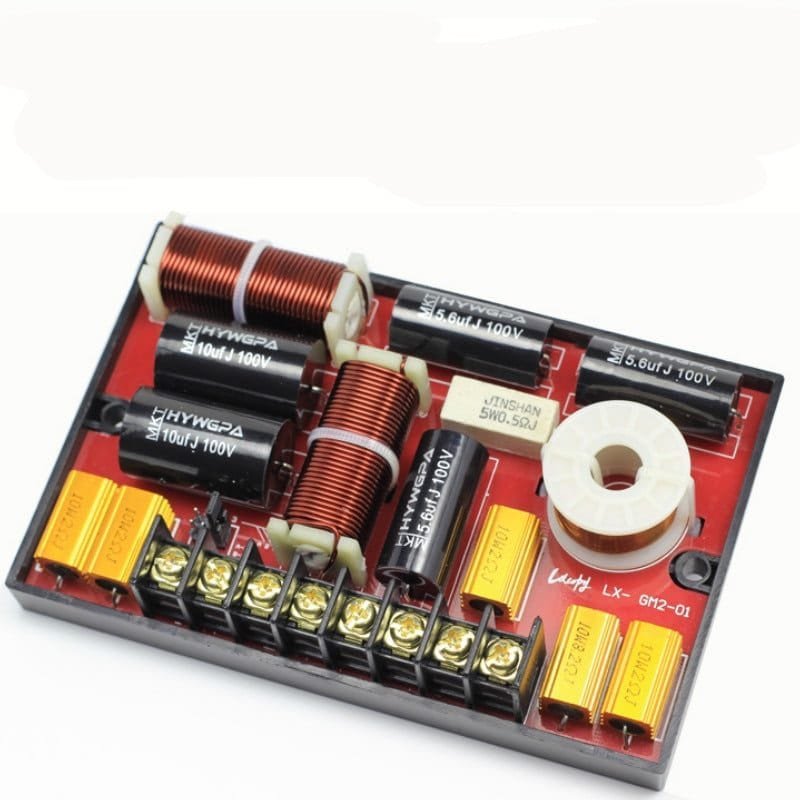

12dB/oct crossover Clean,Pure copper air-core inductors.
Bass, treble, all pretty sound.

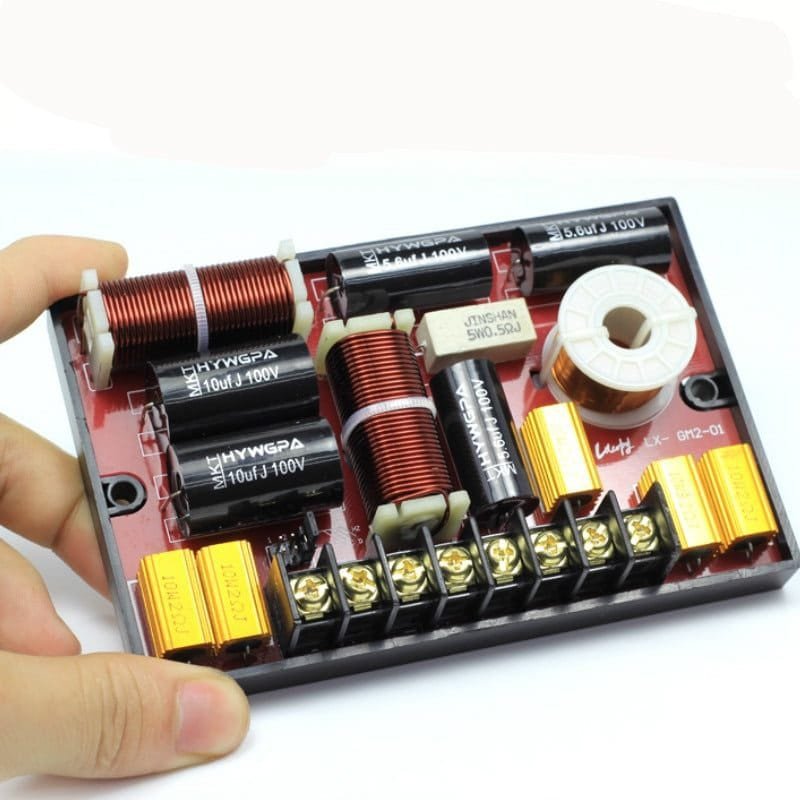

Metal film capacitors. Integral component placement elegant.
Line rigorous design and simulation.
A change in the frequency divider ordinary common problem.
Every detail is trying to do better.
